BAIJIANG

DETAIL

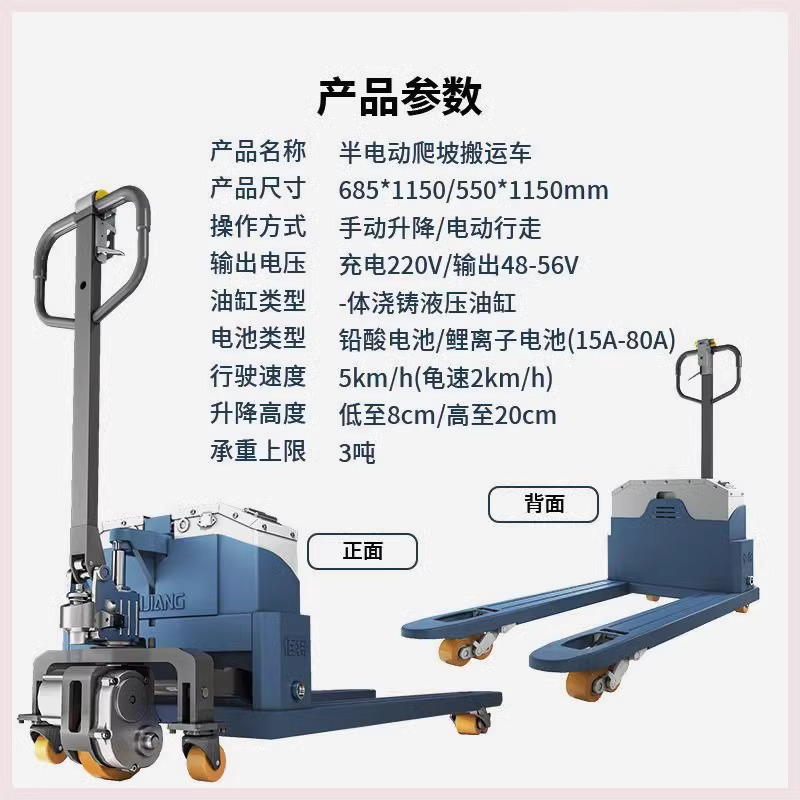

MT20C-MT30C

Weighing capacity: 3 tons

Operation mode: Manual lifting/Electric walking

Output voltage: Charging voltage 220V / Output 48-56V

Cylinder type: Integrated cast hydraulic cylinder

Battery type: Lead-acid battery / Lithium-ion battery (15A-80A)

Travel speed: 5km/h (Low speed 2km/h)

Lifting height: 5cm to 20cm

Dimensions

Narrow fork model: Fork inner spacing 23cm, fork width 16cm, total fork width 55cm

Wide fork model: Fork inner spacing 36.5cm, fork width 16cm, total fork width 68.5cm

Detailed Data

"Bringing customers the most transparent dimensions"

Fork Dimensions (Narrow Fork Model)

Inner spacing: 23cm
Fork width: 16cm
Overall width: 55cm
Fork blade length: 115cm
Total length: 155cm
Total height: 123cm

Fork Dimensions (Wide Fork Model)

Inner spacing: 36.5cm
Fork width: 16cm
Overall width: 68.5cm
Fork blade length: 115cm
Total length: 155cm
Total height: 123cm

Applicable Range

Only suitable for Chuan-style pallets and requires the pallet to be higher than 9cm (Tian-style pallets not applicable)
Choose 685mm forks for pallet inner width greater than 70cm
Choose 550mm forks for pallet inner width less than 70cm

Variety of Available Styles

Our forklifts can greatly meet your handling needs

MT20C-MT30C

Dimensions

Detailed Data

Fork Dimensions (Narrow Fork Model)

Fork Dimensions (Wide Fork Model)

Applicable Range

Variety of Available Styles
